Aluminium Channel Letter

TMT is bringing quality for you...

Aluminium channel letters can be produced based on combination of aluminium and acrylic materials. Aluminium sides can be painted with electrostatic powder coating.

Aluminium channel letters can be used in any size and all areas.
It is not affected by the harsh weather conditions. Lightweight and durable.

TMT Reklam, delivers your high quality aluminium channel letters to all over the world in a short period of time.


Profile 1 Unilluminated Aluminium Channel Letter

Unilluminated channel letters can be produced based on stainless steel or aluminium material both on the sides and front face. It can be fixed together with high mounting screws or customly made pvc foam attached to the back side of the letter.
For aluminium options electrostatical powder coating is being applied any RAL code that you required.
All our channel letters being packed and shipped to worldwide together with well-known brands of carriers.

TECHNICAL SPECIFICATIONS

profile 1 aluminyum kutu harf Side Band Joint
Aluminium Welding
Montage
High Mounting Screws
Front Side
Electrostatic Powder Coated Alüminyum
Side Band
Electrostatic Powder Coated Alüminyum

profile 3 endirekt AYDINLATMAlı alüminyum kutu harf Side Band Joint
Aluminium Welding
AYDINLATMA
TMT LED Module
Montaj
High Mounting Screws
Front Side
Electrostatic Powder Coated Alüminyum
Side Band
Electrostatic Powder Coated Alüminyum
Profile 3 Back-lit Channel Letters

Back-lit channel letters can be produced based on stainless steel or aluminium material.
For aluminium options electrostatical powder coating is being applied any RAL code that you required.
Letters can be fixed by high mounting screws.
Back-lit channel letters illuminate by high quality LED modules for the best advertising solution.

TECHNICAL SPECIFICATIONS


Profile 3 Premium Back-lit Channel Letter

Acrylic based back-lit channel letters can be produced based on stainless steel or aluminium material.
We use 5 - 20 mm acrylic as a cover for the back side of the letter. The LED lights get diffused by help of acrylic based back cover and offers homogeneous light distrubition without any dot reflecting effect.
In the mean time the light is distributing from the edges of the acrylic with smooth looking.

TECHNICAL SPECIFICATIONS

profile 3 endirekt AYDINLATMAlı premium alüminyum kutu harf Front Side
Electrostatic Powder Coated Alüminyum
Side Band
Electrostatic Powder Coated Alüminyum
Back Side
Acrylic
Montage
High Mounting Screws
AYDINLATMA
TMT LED Module

profile 4 Back Side
PVC Foam
AYDINLATMA
TMT LED Module
Trim
Electrostatic Powder Coated Alüminyum
Side Band Joint
Aluminium Welding
Side Band
Electrostatic Powder Coated Alüminyum

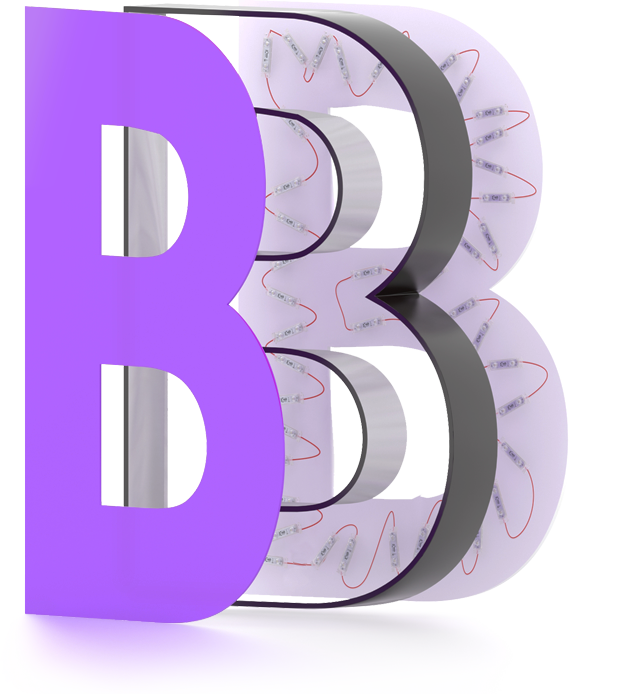

Profile 4 Front-lit Channel Letters

Any size of trim is being applied on the front face of the letter according to your request.
Front-lit channel letters can be produced based on stainless steel or aluminium material.
Side band height can be between 60 and 100 mm for stainless steel material. For aluminium material, side band height can be between 60 and 160 mm.

Electrostatical powder coating with any required RAL code can be applied for the aluminium material. LEDs will be mounted on 8 - 20 mm pvc foam and pvc foam is used as a back cover of letter.

TECHNICAL SPECIFICATIONS


Profile 5 Front-lit Aluminium Channel Letters

Front face of the letter is selected from various RAL codes among the acrylic color chart. Side bands and the back cover of the letters are manufactured by powder coated aluminium material.

The back cover and side bands get clinched with clinhing machine or get welded. Clinched or welded back cover and side bands get painted in any RAL color (There are several elkamet colors). Elkamet is bordering front face of the letter and fixed with screws from the sides of the elkamet.

TECHNICAL SPECIFICATIONS

profile 5 önden AYDINLATMAlı elkametli alüminyum kutu harf Side Band Joint
Aluminium or Acrylic Lath
Back Side
Electrostatic Powder Coated Alüminyum
Back Side Joint
Aluminium Clincher
AYDINLATMA
TMT LED Module
Front Side
Acrylic
Side Band
Electrostatic Powder Coated Alüminyum

profile 6 önden AYDINLATMAlı alüminyum kutu harf Side Band Joint
Aluminium or Acrylic Lath
Back Side
Electrostatic Powder Coated Alüminyum
Back Side Joint
Aluminium Clincher
AYDINLATMA
TMT LED Module
Front Side
Acrylic
Side Band
Electrostatic Powder Coated Alüminyum
Profile 6 Front-lit Channel Letters

Front face of the letter is selected from various RAL codes among the acrylic color chart. Side bands and the back cover of the letters are manufactured by powder coated aluminium material.
Electrostatical powder coating can be applied with any required RAL code.
Letters illuminate with LED modules which are specially designed for the channel letter systems.

Profile 6

Profile 6

TECHNICAL SPECIFICATIONS


Profile 6 ECO Front-lit Channel Letters

Profile 6 eco is an alternative for profile 6 channel letters which are made based on acrylic front face and aluminium side bands. Front face acrylic can be selected from any RAL code.

Side bands and front face get glued eachother with special adhesive.

8 - 20 mm pvc foam is used for channel letter’s back cover.

TECHNICAL SPECIFICATIONS

profile 6 önden AYDINLATMAlı alüminyum kutu harf Front Side
Acrylic
Joint
%100 Clear TG59-CM Glue
Side Band
Electrostatic Powder Coated Alüminyum
Back Side
PVC Foam
AYDINLATMA
TMT LED Module

Production Quality

Alüminyum kutu harfler istenilen ölçüye göre otomatik kutu harf bending makinelerimiz ile bükümü sağlandıktan sonra arka yüzeyleri cnc lazer makinesi ile kesilir.

Bending makinesinden çıkan yan bantlar, kaynağı ortadan kaldıran alüminyum clincher makinesi kullanılarak arka yüzeye sabitlenir. Dünyanın en iyi yapıştırıcıları kullanılarak kutu harflerde sızdırmazlık sağlanır. Kutu harflerin ydınlatması dünyanın en iyi LED'lerini üreten Nichia firması ile ortak çalışma yapılarak üretilen TMT LED Modüller ile sağlanır.

ALÜMİNYUM BENDING & PUNCHING MACHINEALÜMİNYUM BENDING & PUNCHING MACHINE
ALÜMİNYUM BENDING MACHINEALÜMİNYUM BENDING MACHINE

Application Examples
